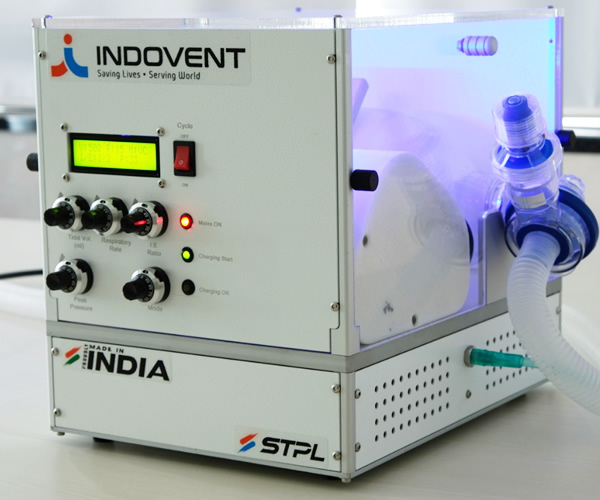

Indovent Ventilator

Saving Lives • Serving World

Mechanical ventilation is necessary and used in many areas of patient care. STPL offers INDOVENT, a dual solution ventilator which combines the advantages of a flexible non-invasive ventilator with a full-featured invasive ventilator for all patient groups in the intensive care unit, emergency ward, recovery room or intermediate care as well as in long-term acute care facilities and during intra-hospital transport.

Requiring a minimum space, the INDOVENT provides mechanical breathing support with maximum mobility. It is coupled with high-capacity batteries to ventilate the patients during intra-hospital transport without the need for an external power source.

Ventilation Modes:
• VCV - Volume Controlled Ventilation
• PSV - Pressure Support Ventilation
• ACV - Assist-Control Ventilation

ventilator

Key Features

Superior Mobile ventilator:
• Compact, big capacity battery, no air compressor, intra-hospital mobility
• Flexible device configuration: mount on a trolley, bed or ceiling pendant
• Compatible with automotive charging stations.

Engineered for reliability
• Rugged and Robust design
• Very compact footprint

Optimal patient-ventilator synchrony, increase patient comfort
• The Electronically Controlled Tidal Volume System - Keep precise control on the tidal volume of each breath delivered to the patient by adjusting compensation dosage automatically
• Auto Calibration - Enhance sensitivity, avoid spurious triggering.
• Electronically controlled Inspiration-Expiration ratio(IE).

Safe Ventilation Through Whole Treatment Phase
• Non-invasive ventilation mode associated with decreased intubation rates, shortened patient stays, improved patient comfort, and a reduced risk of cross infection

Specifications

Operating Specifications
Suitability for patient types Adult
Operation type Automatic electromechanical compression of AMBU Bag
Control modes VCV, PSV & ACV
AMBU Bag size Adult (1500 - 1600 ml)
Max respiratory flow rate 20 liters per minute
Tidal Volume Range : 100 - 600 ml.
Can be adjusted electronically in step size of 50 ml
I:E Ratio Range : 1:1 to 1:3.
Can be adjusted electronically in step size of 1
Peak Inspiratory pressure limit 0-50 cm H2O;
Can be adjusted electronically in step size of 1
PEEP function PEEP valve of 5-20 cm of H2O
Reusability of AMBU Bag Yes
Inline HEPA filter Yes
Machine operation failure Yes
Electrical and Mechanical Specifications
Power supply requirement 230 V AC (50/60 Hz) or Automotive charger plug with adequate current capacity
Backup battery Sealed automotive battery. To be purchased separately
Battery backup 5 to 6 hours on a fully charged battery
Power Consumption 125 Watts (Approx.)
Motor life 2 years (Approx.)
Dimension 228 mm x 320 mm x 275 mm (L x W x H)
Weight 7 Kg without optional battery (8 Kg with battery)
Alarms
   Power disconnected
   Machine operation failure
   High inspiratory pressure
User Interface
User interface Four analogue rotary dials for command inputs.
Two line backlit LCD display for inputs commands and
parameters display.
Input order Control Five analogue rotary dials
1. Tidal Volume
2. Respiratory Rate
3. Inspiration:Expiration time ratio
4. Alarm pressure setting
5. Mode control
Display Two line LCD readout of set parameters and Air volume per minute display
Alarm Buzzer
Warranty
One year warranty for manufacturing defects from the date of shipment.*
