Fiber Laser Marking

  •    Maintenance Free

  •     Low Power Consumption

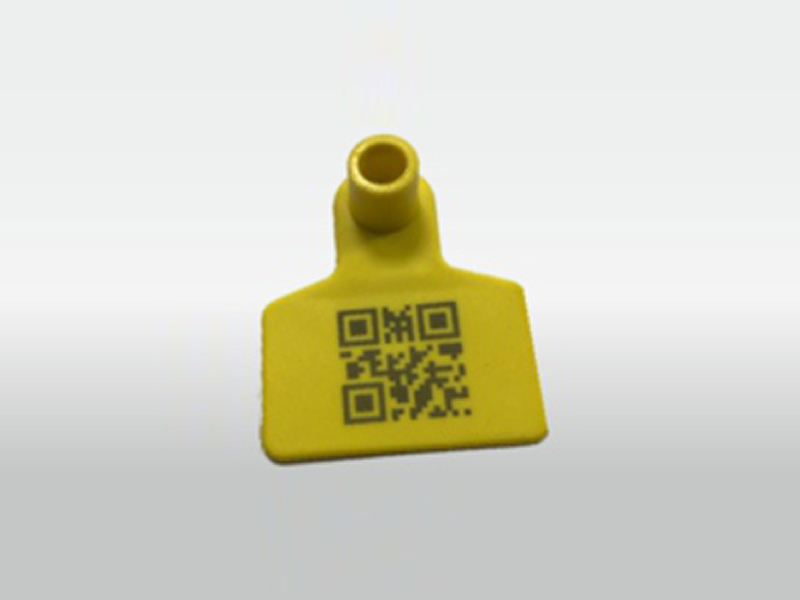

  •     All kind of Barcode application

  •     Portable machine design with compact size

  •     Real time red beam preview ensures accurate positioning

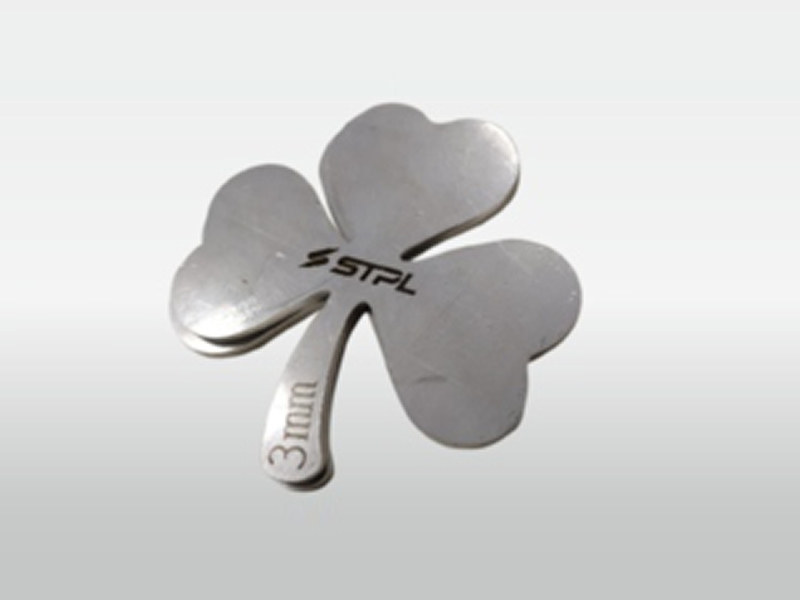

  •     Compatible with Surface marking, Engraving & Texturing

  •     Customise Integration & Automation

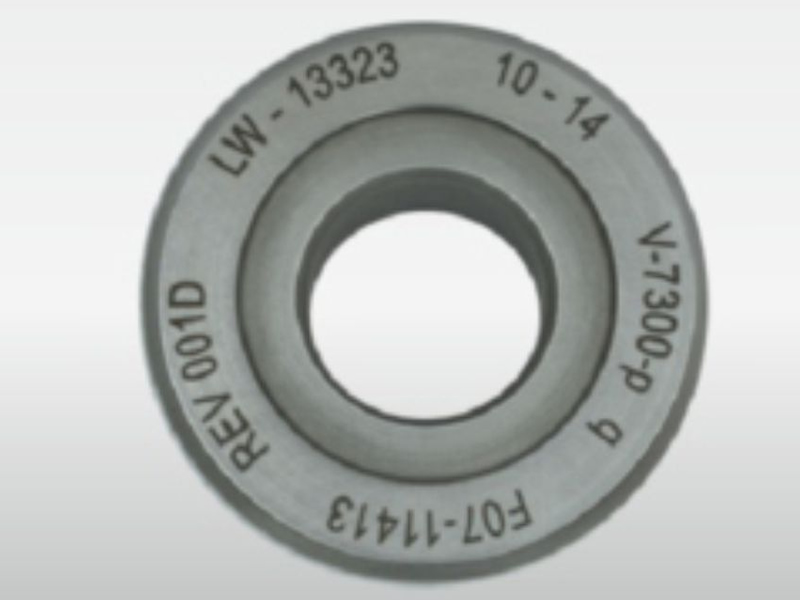

  •     Circumferential Markings

Make Inquiry

Technical Specification

Technical Details Specification
Product Name Fiber Laser Marking
Wave length 1064nm
Beam Quality < 2
Frequency 20khz---80khz
Pulse energy 2mJ
Beam Divergence ±0.3mrad
Laser Class IV
Marking Scope 110*110mm/200*200mm/300*300mm
Marking Linear Speed ≤7000mm/s
Marking Depth 0.001῀0.5mm
Marking Line Width 0.001mm
Repeat Accuracy 0.003mm
Electrical Source 220v/50hz or 60hz

Applicate Industry

  • Electrical Engineering and Electrical part and component

  • Mobile (Cover, battery, keyboard, Phone Case)

  • Jewellery (Ring, pedant, bracelet),Eyeglass, clocks and craft

  • Building materials, PVC pipe

  • Car motor car spare part, Instrument and meters and cutting tool

  • Plastic case, aviation and aerospace

  • Military product, hardware fitting and accessory, sanitary appliance

  • Food and beverage ,Medicine package and medical instrument, solar PV industry
